Seqrite Unified Threat Management (UTM)

UTM Solution for SOHOs and SMBs

With adoption of sophisticated and complex technology at workplace, SOHOs and SMBs (small and medium businesses) are becoming increasingly vulnerable to cyber threats. It is challenging for network administrators to monitor and prevent potential cyber attacks. They continue to depend on multiple security solutions such as firewall, intrusion prevention systems, antivirus and more, to protect their network security. In today’s technology-driven world, enterprises have to stay connected anytime and anywhere. A Unified Threat Management (UTM) reduces security complexities by integrating key IT security features in one integrated network security product.

Seqrite UTM is a high-performance, easy-to-use Unified Threat Management (UTM) solution for small and mid-sized enterprises. The new collaborative platform architecture brings network security, management, backup and recovery of UTM data, and many other critical network services together under a single unified umbrella. UTM is tailored to suit the complexity of emerging threat scenarios. This fully integrated product is a simple and smart way of replacing multiple security programs with one solution

Secure, Safe and Virus-Free Network with UTM

UTM Product Highlights

»  Easy deployment and management.
»  Plug-and-play solution without manual intervention or changes.
»  Detects and prevents intrusion and protect networks from hackers who can sneak into the system.
»  Allows multiple ISPs to be used by UTM.
»  Automatically diverts data traffic from inactive ISP to active ISP lines.
»  Administrators can control access to applications by configuring rules.
»  Provides comprehensive logging and reporting with a user-friendly web-based configuration.
» Easily available customer support and consultation.

Seqrite UTM Features

Networking

» ISP Load Balancing
» Policy-Based Routing
» Automatic Gateway Failover
» VLAN Support 802.1Q
» Integrated DNS Server
» Dynamic DNS
» DHCP Server
» USB Internet Support 3G/4G
» IP and Port Forwarding
» IEEE 802.1D Transparent Bridging
» Configurable LAN/WAN/DMZ Ports
» NTP Support
» Link Aggregation
» Network Address Translation (NAT) – Masquerade and SNAT
» Multicast Routing
» H323 and SIP VoIP protocol Support

Administration

» Multiple Administrator Support
» Administrator Profile Management
» Command Line Interface (CLI)
» Multi Lingual Support
» Web Portal Customization
» Backup and Restore Configurations
» Easy Registration (online/offline)
» Device Offline Mode
» Automatic and Manual Update
» Online and Offline Firmware Upgrade

URL Filtering

» Category Based
» Custom Web Lists
» HTTP & HTTPS Blocking
» Bandwidth Limit for each profile/user
» Time Based Access Limit
» Bandwidth Management
» Quota Management
» Keyword Blocking in HTTP(S) Traffic

User Authentication

» Internal Database
» Active Directory Integration
» LDAP Integration
» IP / MAC Binding
» Multiple Authentication Servers
» Guest User Support
» Group Based Access Control
» Captive Portal

Monitoring & Reporting

» CPU/RAM/Disk Usage
» Alerts (Email and SMS)
» Detailed Reports
» (Daily, Weekly and Monthly) Diagnostic Tools
» Log Viewer
» Port Mirroring

Mail Protection

» Mail Antivirus and Anti-spam
» (SMTP, POP3 and IMAP)
» Attachment Control
» Keyword Blocking in Email

Firewall & Security Features

» Firewall
• Traffic Logging
• Predefined Firewall Rules
• Zone Support
• Stateful Inspection
» Intrusion Prevention System
» Gateway Antivirus
» Automatic Update for AV, IPS

VPN

» IPSec VPN:
• Perfect Forward Secrecy(PFS)
• NAT Traversal
• VPN Compression
• DNS Setting for PPTP Server
• Multiple Subnet Support

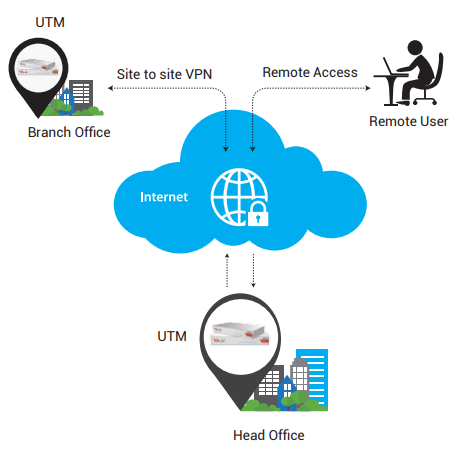

» Site-To-Site VPN
» Remote Access VPN SSL VPN
» Remote Access Client Software
» SSL VPN Compression
» Dead Peer Detection

Seqrite UTM Technical Specifications

ModelsT2S-10 T2S-30 T2S-60 T2M-100 T2M-250
Interface
Copper GbE ports
346810
Console port
11111
USB Ports
22222
Performance
Firewall TCP Throughput (Mbps)
110014003910600010000
Concurrent Sessions
50000131072150000262144393216
New Sessions/Second
51007900130002470038200
Antivirus Throughput(Mbps)
120130350470920
IPSec VPN Throughput(Mbps)
27028058010251510
SSL VPN Throughput(Mbps)
90100140240320
IPS Throughput (Mbps)
480500135025005000
UTM Throughput(Mbps)
120130330460910
Users/nodes
UnrestrictedUnrestrictedUnrestrictedUnrestrictedUnrestricted
Form Factor
Desktop
Desktop
Desktop
1U
1U
Dimension (W x D x H) (inches)
9.1 x 6 x 1.7
9.1 x 6 x 1.7
9.1 x 6 x 1.7
16.9 x 13.7 x 1.7
17.2 x 11.4 x 1.7
Dimension (W x D x H) (mm)
232 x 153 x 44
232 x 153 x 44
232 x 153 x 44
430 x 350 x 44
438 x 292 x 44
Weight1.2 kgs
1.2 kgs
1.5 kgs
7.5 kgs
6.5 kgs
Operating Temperature
0 ~ 40°C ( 32 ~ 104°F )
0 ~ 40°C ( 32 ~ 104°F )
0 ~ 40°C ( 32 ~ 104°F )
0 ~ 40°C ( 32 ~ 104°F )
0 ~ 40°C ( 32 ~ 104°F )
Power Supply
40W external power adapter
40W external power adapter
40W external power adapter
150W ATX
250W ATX
CertificationCE/FCC/BIS
CE/FCC/BIS
CE/FCC/BIS
CE/FCC
CE/FCC/UL
